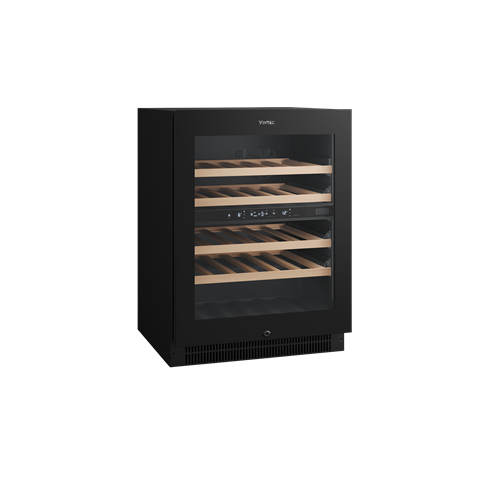

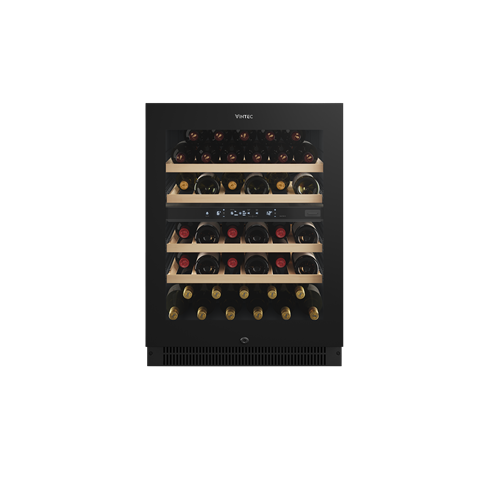

VWD820SCB-X
Luxe – Dual Zone Wine Cabinet
Versatile and stylish 40-bottle Dual Zone wine cabinet which can be set for cellaring all wines OR serving red or white wines at the ideal drinking temperatures. *Capacity is based on 750mL Bordeaux bottle shape and size.
The Vintec 5 Pillars of Wine Storage
Vintec wine cabinets recreate the ideal conditions to protect wine for the short or long-term, by strictly adhering to the Vintec 5 Pillars of Wine Storage.
Features & benefits
Store up to 40 Bordeaux style bottles

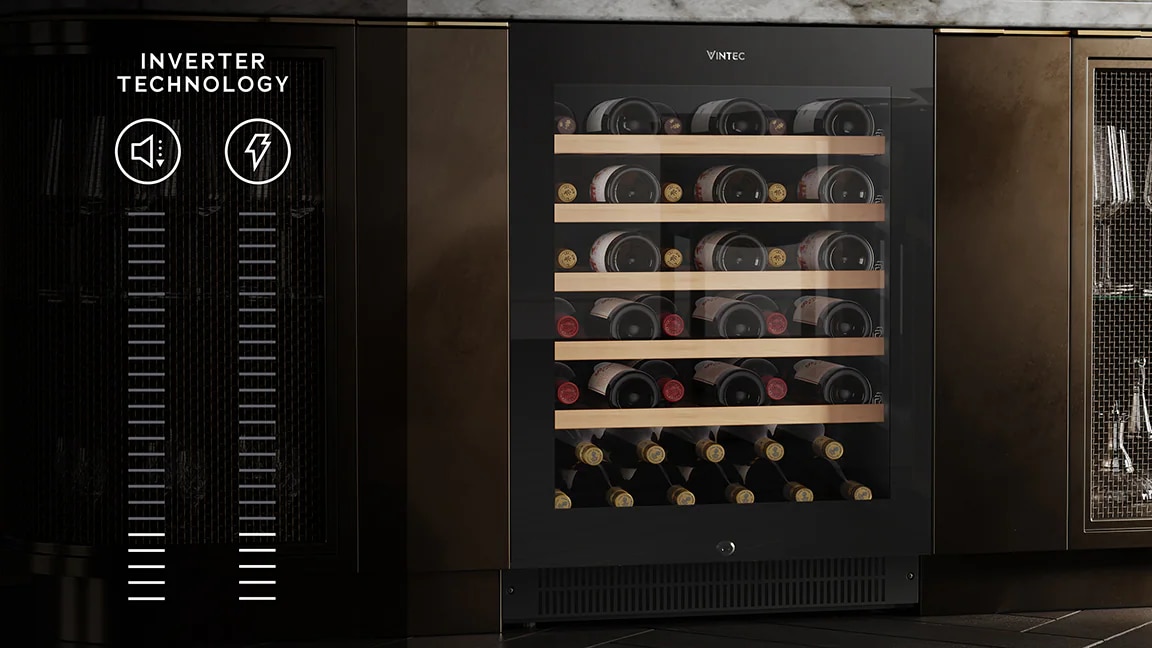

Inverter compressor
Dedicated cellaring mode

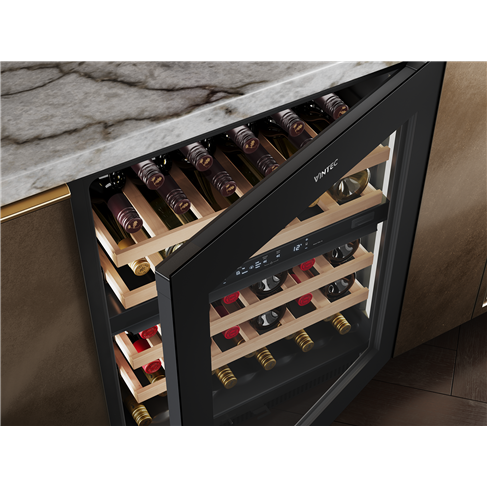

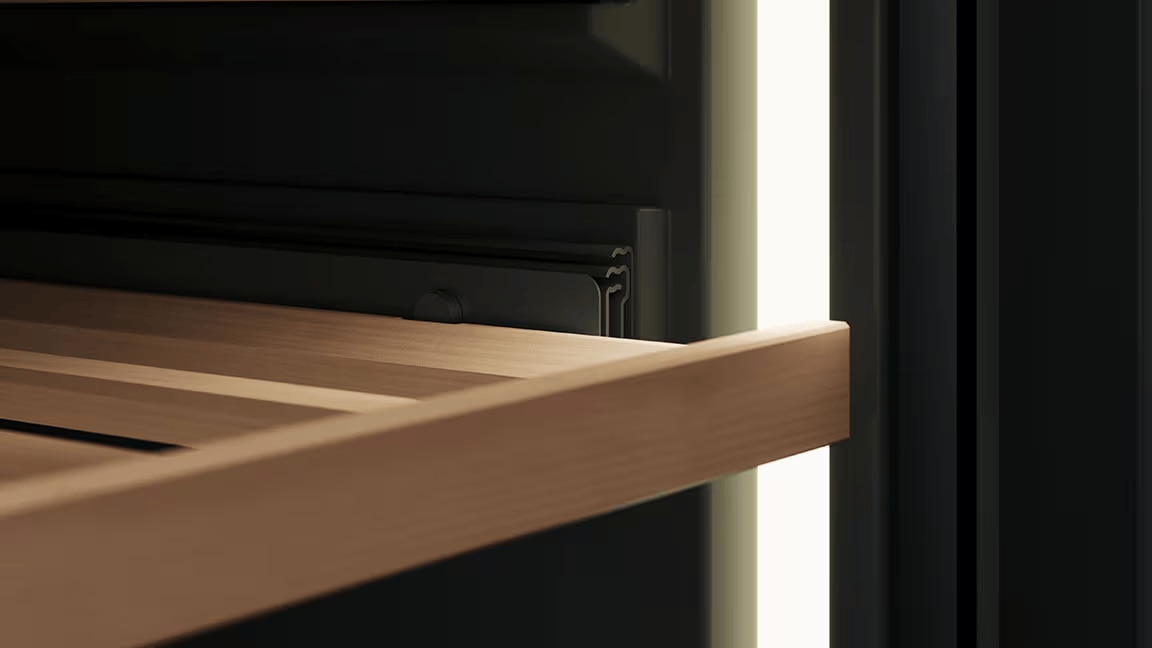

Fully extendable shelves on Telescopic runners

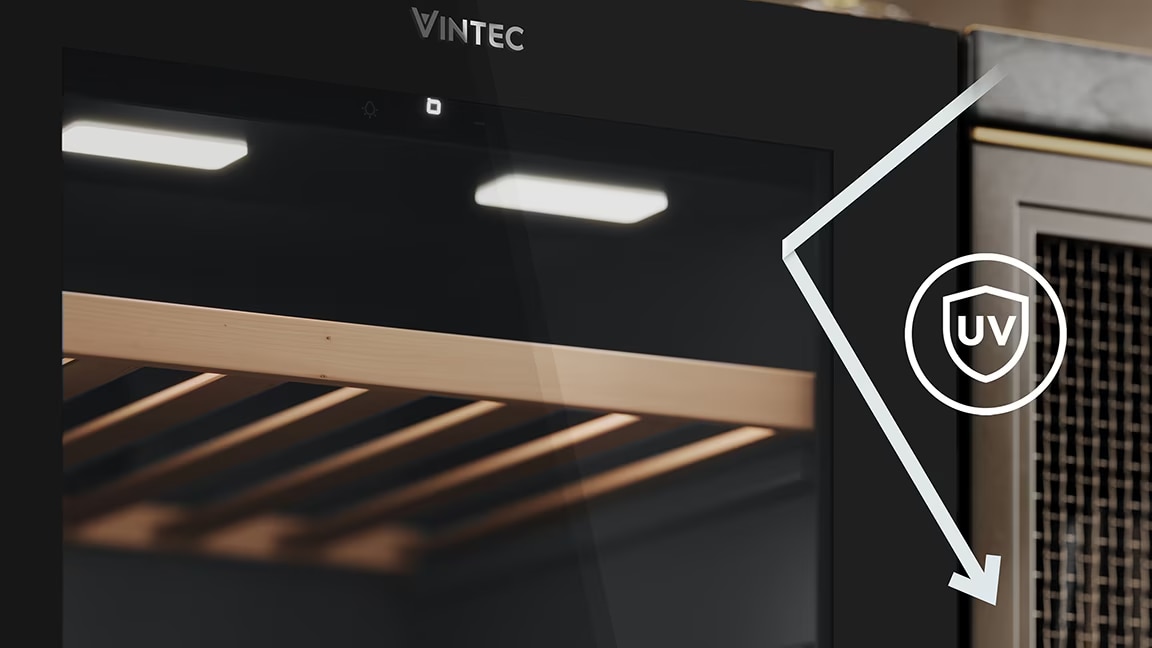

Double glazed door, with anti-UV glass
Reversible door

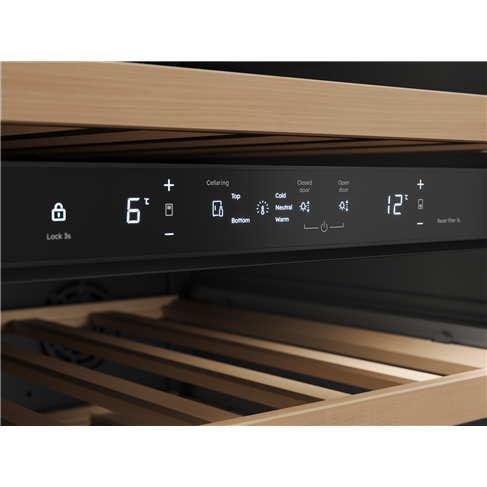

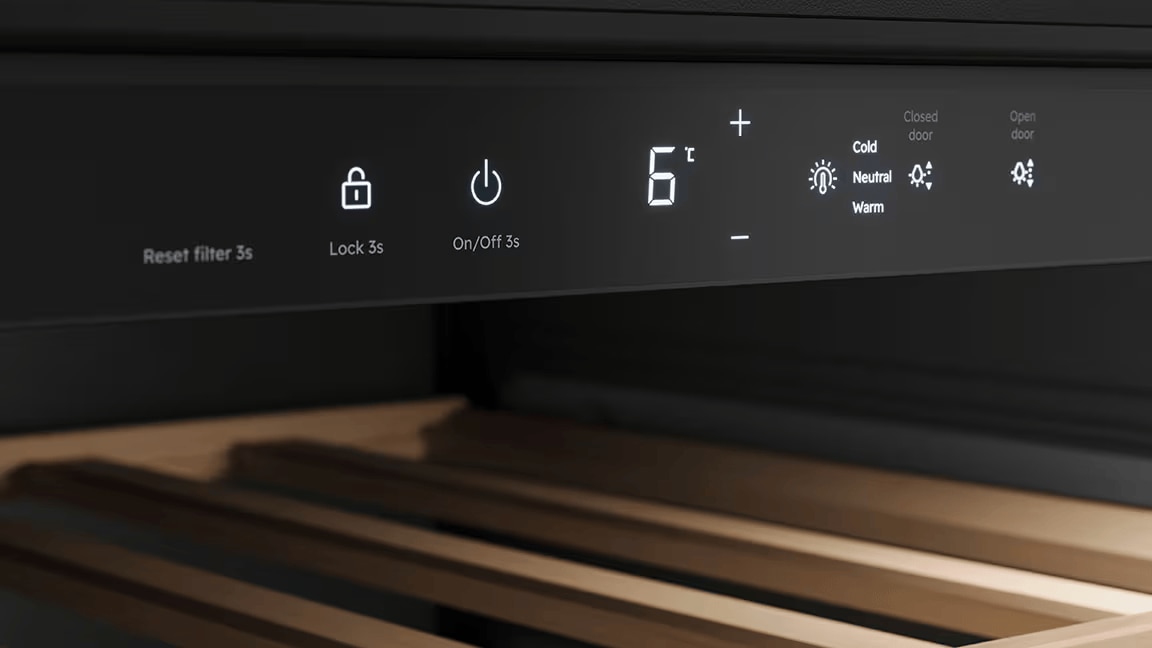

Sleek intuitive touch controls
Security lock
Air filter
Anti tip fixing bracket
The Vintec Full Experience

Elevate your wine experience
The Vintec Club is a private club for owners of Vintec cellars.
The club is fully focused on providing educational content, exclusive benefits and unique wine experiences to enrich and support our members along their wine journeys, while connecting them with other like-minded people.

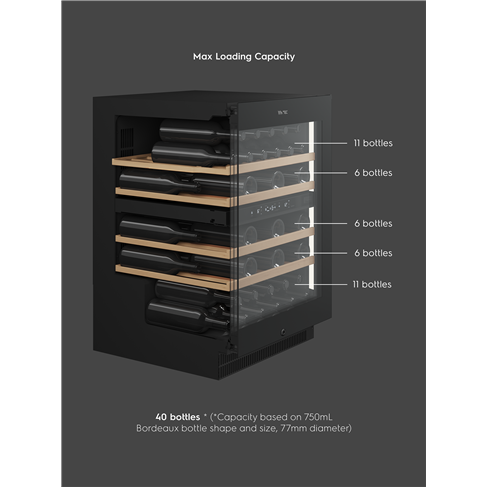

Bottle Placement Guide
Vintec Wine Cabinets' maximum capacity are expressed in standard bordeaux-shapped bottles. Since most collections are composed of a wide range of bottle shapes and sizes, follow the principles below to best utilize the space inside your cellar
- Neck-to-neck placement
- Complementary shapes
- Stacking for cellaring
- Stacking for accessibility
*Shelf illustration depicts a generic shelf as layouts vary depending on the product model. Nonetheless, same principles for storing and stacking apply to all Vintec products.
If your wine cabinet has flexible shelving, reducing the number of shelves and stacking bottles will increase the capacity of your wine cabinet.
Specifications
PRODUCT PROFILE
- Domestic warranty details (yrs) 2

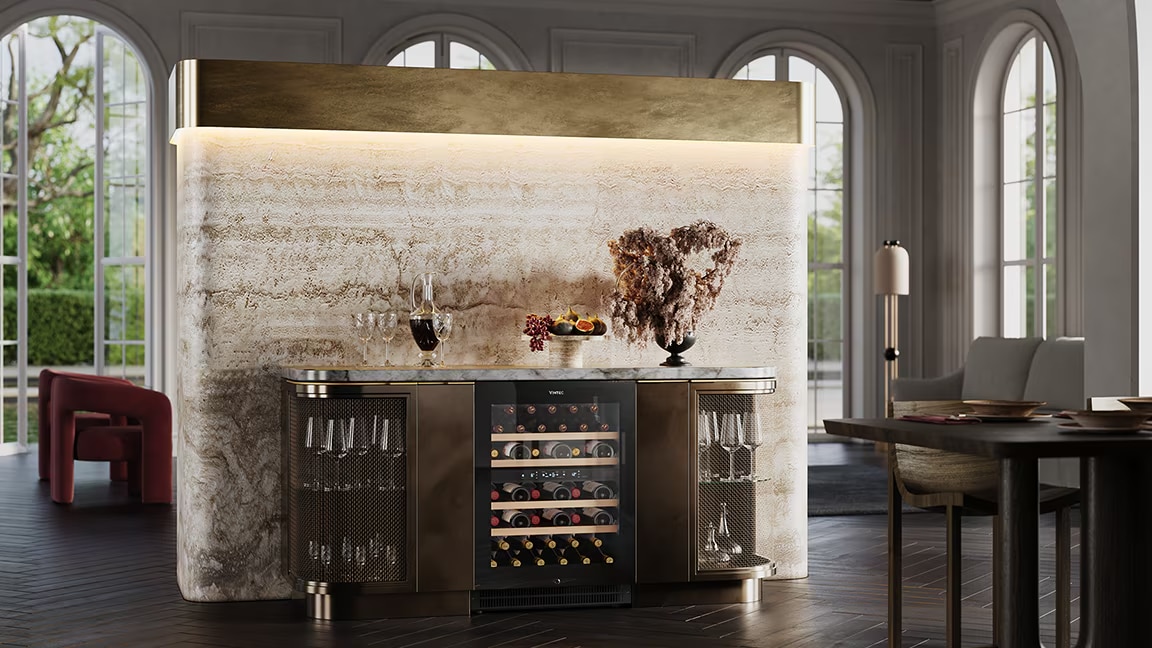

- Installation Type Built-in and Freestanding
- Finish Borderless Black Glass
- Door Type Glass Door
- Door Construction Double Glazed, UV Treated
- Handle Recessed
- Fridge door opening Reversible
- Easy Capacity (Bottles) 40
- Max Capacity (Bottles) 40
- Main Function Cellar or serve red or white wine

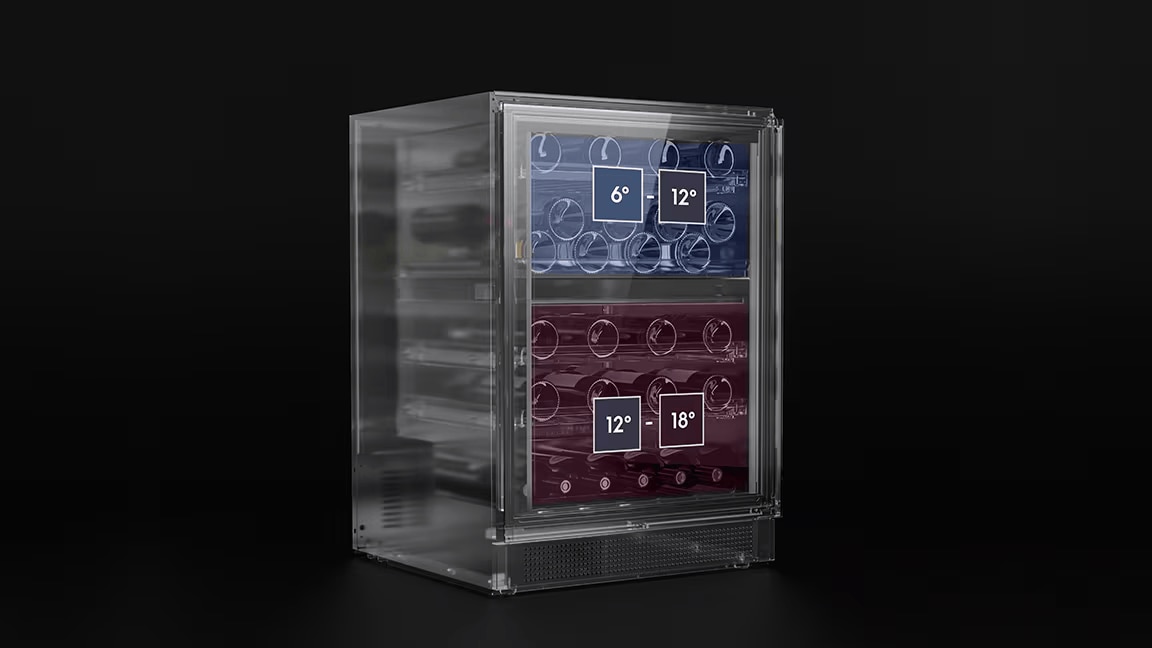

- No of Zones 2
- Temperature Range Zone 1 (deg) 6°C - 12°C
- Temperature Range Zone 2 (deg) 10°C - 18°C
DIMENSIONS & WEIGHT
- Air space at sides (mm) 10
- Air space above cabinet (mm) 30
- Rear Spacer (mm) 30
- Weight Unloaded 50
- Height (mm) 820
- Width (mm) 595
- Depth (mm) 564
- Joinery cut out dimension- minimum height (mm) 850
- Joinery cut out dimension- minimum width (mm) 615
- Joinery cut out dimension- minimum depth (mm) 555
- Plinth Height (mm) 78
