THIS PRODUCT HAS BEEN DISCONTINUED
50 Bottle Wine Cabinet
V40SGES3
50 Bottle Wine Cabinet
V40SGES3
Single Zone
Easy:
0
Max:
0
50 bottle* single zone cellaring or serving wine cabinet with stainless steel finish - designed to match the V40BVCS3. *based on Bordeaux shaped bottle
820H x
595W x
563D (mm)
Features & benefits
Stable Temperature
Our wine cabinets maintain a stable temperature to keep your wine in perfect cellaring conditions. This is thanks to triple glazed glass, insulated side panels and interactions between a compressor and thermostat. (Digital display varies by model)

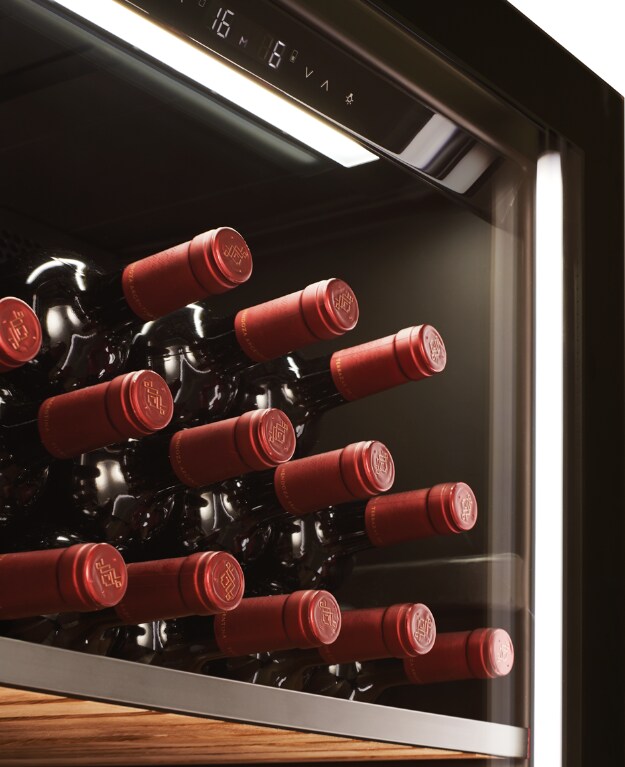

UV Protected Dark Storage Area
UV rays negatively impact the quality of your wine. Our cabinets eliminate this threat by incorporating UV treated tinted glass doors, dark interiors and dimmed internal LED lights.
No Vibration
To protect the storage life and quality of your wine, our cabinets have been designed to create a vibration proof environment by including an externally housed compressor, rubber shock absorbers and vibration absorbing wooden shelves.
Humidity above 50%
Our wine cabinets incorporate a Thermal Recycling Pump that ensures adequate humidity levels are maintained. The Thermal Recycling Pump works by heating condensed water, which is then introduced as humid air within the cabinet.
Triple glazed door, with anti-UV glass

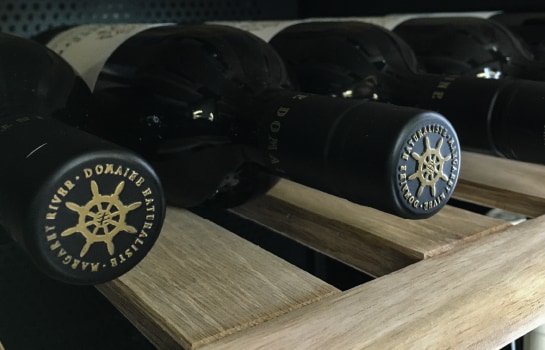

Adjustable wooden shelves
Security lock
Reversible door

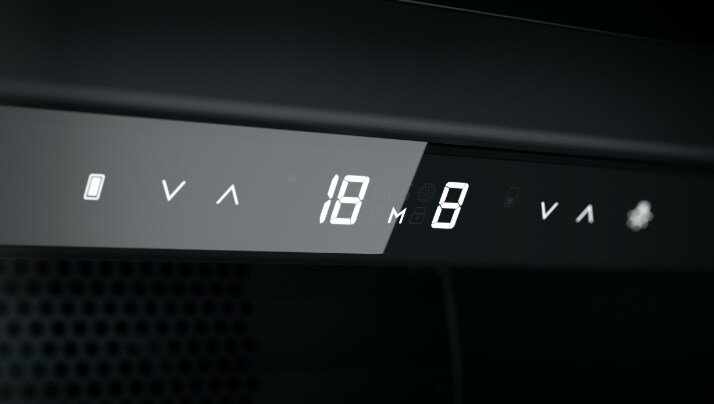

Digital temperature display
LED internal lighting
Specifications
Wine Cellars
- Installation Type Both
- Finish Seamless Stainless Steel
- Door Type Glass Door
- Door Construction Triple Glazed, UV treated
- Handle Recessed
- Fridge door opening Reversible
- Refrigerant R600a
- Main Function Cellar red & white wine
- Alternate Function Cellar or serve red or white wine
- No of Zones 1
- Temperature Range Zone 1 (deg) 6 - 18 Degrees C
- Depth Door Open (mm) 1140
- Air space at sides (mm) 10
- Air space above cabinet (mm) 30
- Joinery cut out dimension- minimum height (mm) 850
- Joinery cut out dimension- minimum width (mm) 615
- Joinery cut out dimension- minimum depth (mm) 600
- Door depth including seal (mm) 39
- Plinth depth (mm) 76
- Plinth Height (mm) 84
- Rear Spacer (mm) 30
- Weight Unloaded 52
- Weight Loaded 102
- Power Supply 240V / 10AMP
- Electricity Consumption (kWh/Day) 1
- Ambient Temperature (deg) 5-35
- Display Panel LED Digital Display
- Castors and Feet 4 Adjustable Feet
- Internal Heater No
- Lock Yes
- Alarm Visual
- Lighting Blue LED
- Number of Shelves 5
- Shelving Material Metallic
- Shelving Type 4 Full,1 Half
- Shipping Weight (Kg) 52
- Pack Dimensions Height (mm) 880
- Pack Dimension Width (mm) 665
- Pack Dimension Depth (mm) 685
- Type Wine Cabinet
- Function Cellar
Dimensions
- Height (mm) 820
- Width (mm) 595
- Depth (mm) 563
