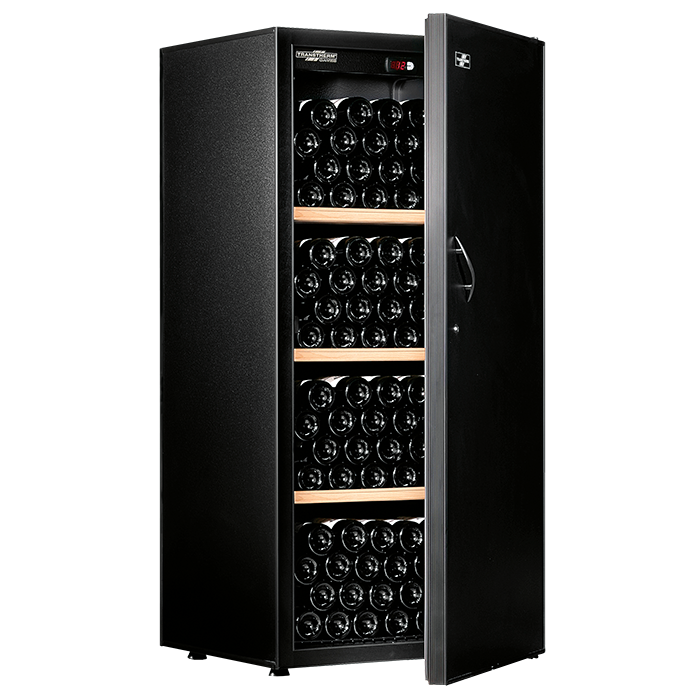

Transtherm Villa 202 Bottle Single Zone Wine Vault

TVIL1PDBLK
Img 1
Img 1

Transtherm Villa 202 Bottle Single Zone Wine Vault

TVIL1PDBLK
Temp Icon Single Zone
Bottle Icon
Easy: 173
Max: 202

202 bottle* single zone cellaring cabinet for red and white wines. *based on a Bordeaux shaped bottle

  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getAggregateRating, 561ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
1470H x 680W x 680D (mm)

Features & benefits

Vibration Reduction System

To protect the storage life and quality of your wine, our cabinets have been designed to create a vibration proof environment by including an externally housed compressor, rubber shock absorbers and vibration absorbing wooden shelves.

Humidity above 50%

Our wine cabinets incorporate a Thermal Recycling Pump that ensures adequate humidity levels are maintained. The Thermal Recycling Pump works by heating condensed water, which is then introduced as humid air within the cabinet.

Winter Heating Function

In some areas, the temperature in winter could drop drastically. Our wine cabinets are equipped with a heating function to deliver a constant temperature through the cellar all year round.

Frequent Air Circulation

Our cabinets include internal and external fans to ensure there is a slow reticulated air flow throughout the cabinet.
Security Lock
Digital temperature display
Steel reinforced casing
Thermal recycling pump
Winter function heating system
Made in France
Product Features

Specifications

Domestic Warranty
2
Installation Type
Both
Finish
Painted Black Aluminium
Door Type
Solid Door
Door Construction
Solid Door
Handle
D-Shaped
Refrigerant
R134a
Easy Capacity (Bottles)
173
Max Capacity (Bottles)
202
Main Function
Cellar Red & White
Alternate Function
None
No of Zones
1
Temperature Range Zone 1 (deg)
8 - 18 Degrees C
Depth Door Open (mm)
1140
Air space at sides (mm)
10
Air space above cabinet (mm)
50
Joinery cut out dimension- minimum height (mm)
1520
Joinery cut out dimension- minimum width (mm)
700
Joinery cut out dimension- minimum depth (mm)
730
Door depth including seal (mm)
45
Rear Spacer (mm)
50
Weight Unloaded
64
Weight Loaded
266
Power Supply
240V / 10AMP
Electricity Consumption (kWh/Day)
0.68
Ambient Temperature (deg)
0-35
Display Panel
LED Digital Display
Castors and Feet
4 Adjustable Feet
Internal Heater
Yes
Lock
Yes
Alarm
None
Lighting
None
Number of Shelves
3
Shelving Material
Wood
Shelving Type
3 Adjustable
Shipping Weight (Kg)
96
Pack Dimensions Height (mm)
1600
Pack Dimension Width (mm)
760
Pack Dimension Depth (mm)
730
Type
Wine Cabinet
Function
Cellar
Height (mm)
1470
Width (mm)
680
Depth (mm)
680
