170 Bottle Wine Cabinet
V155SGES3
Img 1
Img 1
Img 1
Image Description
Image Description
Image Description

170 Bottle Wine Cabinet

V155SGES3
Temp Icon Single-Zone
Bottle Icon
Easy: 0
Max: 0

170 bottle* single zone cellaring cabinet for red and white wines. *based on a Bordeaux shaped bottle

  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getAggregateRating, 268ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
1770H x 595W x 680D (mm)
Features Specs Downloads Reviews Where to buy

Features & benefits

Image Description

Stable Temperature

Our wine cabinets maintain a stable temperature to keep your wine in perfect cellaring conditions. This is thanks to triple glazed glass, insulated side panels and interactions between a compressor and thermostat. (Digital display varies by model)
Image Description

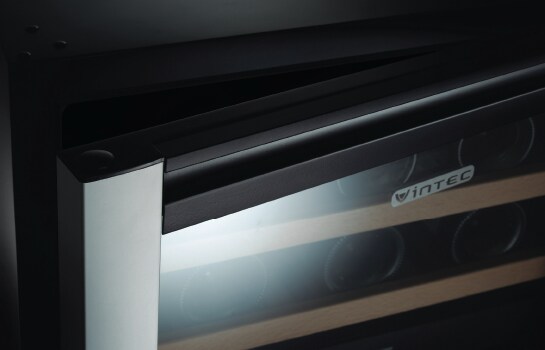

UV Protected Dark Storage Area

UV rays negatively impact the quality of your wine. Our cabinets eliminate this treat by incorporating UV treated tinted glass doors, dark interiors and dimmed internal LED lights.
Image Description

No Vibration

To protect the storage life and quality of your wine, our cabinets have been designed to create a vibration proof environment by including an externally housed compressor, rubber shock absorbers and vibration absorbing wooden shelves.
Image Description

Humidity above 50%

Our wine cabinets incorporate a Thermal Recycling Pump that ensures adequate humidity levels are maintained. The Thermal Recycling Pump works by heating condensed water, which is then introduced as humid air within the cabinet.
Triple glazed door, with anti-UV glass
Slide-out wooden shelves
Thermal recycling pump
Winter function heating system
Security lock
Visual alarm
Reversible door

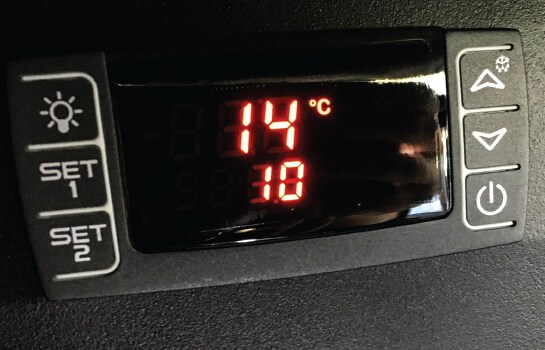

Digital temperature display
LED internal lighting
Product Features

Specifications

Installation Type
Both
Finish
Seamless Stainless Steel
Door Type
Glass Door
Door Construction
Triple Glazed, UV treated
Handle
None
Fridge door opening
Reversible
Refrigerant
R600a
Main Function
Cellar Red & White
Alternate Function
Serve White or Red
No of Zones
1
Temperature Range Zone 1 (deg)
6 - 18 Degrees C
Depth Door Open (mm)
1275
Air space at sides (mm)
10
Air space above cabinet (mm)
50
Joinery cut out dimension- minimum height (mm)
1820
Joinery cut out dimension- minimum width (mm)
615
Joinery cut out dimension- minimum depth (mm)
710
Door depth including seal (mm)
50
Plinth depth (mm)
85
Plinth Height (mm)
85
Rear Spacer (mm)
30
Weight Unloaded
105
Weight Loaded
271
Power Supply
240V / 10AMP
Electricity Consumption (kWh/Day)
1
Ambient Temperature (deg)
5-35
Display Panel
LED Digital Display
Castors and Feet
4 Adjustable Feet
Internal Heater
Yes
Lock
Yes
Alarm
Visual
Lighting
Blue LED
Number of Shelves
15
Shelving Material
Wood with Stainless Steel Front
Shelving Type
14 Sliding, 1 Half
Shipping Weight (Kg)
118
Pack Dimensions Height (mm)
1860
Pack Dimension Width (mm)
650
Pack Dimension Depth (mm)
750
Type
Wine Cabinet
Function
Cellar
Height (mm)
1770
Width (mm)
595
Depth (mm)
680

Downloads

User Manual Quick Start Guide Dimension Sheet Brochure
