Transtherm 190 Bottle Three Zone Wine Cabinet
TCASV3GLBA
Transtherm 190 Bottle Three Zone Wine Cabinet
TCASV3GLBA


Easy:
190
Max:
190
Three zone wine cabinet, ideal to store & serve wine at the same time. Left hand door opening.
1825H x
680W x
690D (mm)
Features & benefits
Stable Temperature
Our wine cabinets maintain a stable temperature to keep your wine in perfect cellaring conditions. This is thanks to its double glazed anti-UV doors, insulated side panels and interactions between a compressor and thermostat.
UV Protected Dark Storage Area
UV rays negatively impact the quality of your wine. Our cabinets eliminate this treat by incorporating UV treated tinted glass doors, dark interiors and dimmed internal LED lights.
Vibration Reduction System

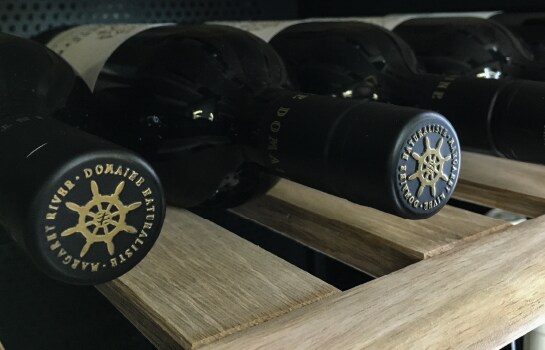

To protect the storage life and quality of your wine, our cabinets have been designed to create a vibration proof environment by including an externally housed compressor, rubber shock absorbers and vibration absorbing wooden shelves.
Humidity above 50%
Our wine cabinets incorporate a Thermal Recycling Pump that ensures adequate humidity levels are maintained. The Thermal Recycling Pump works by heating condensed water, which is then introduced as humid air within the cabinet.
Frequent Air Circulation

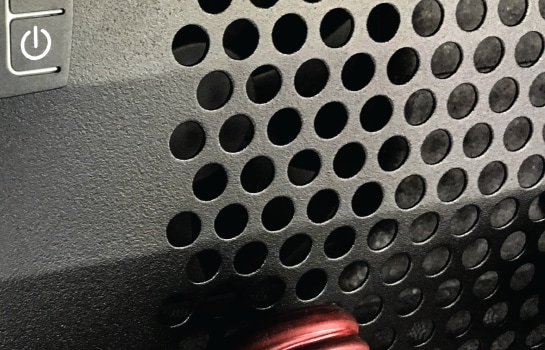

Our cabinets include internal and external fans to ensure there is a slow reticulated air flow throughout the cabinet.
Three separate zones

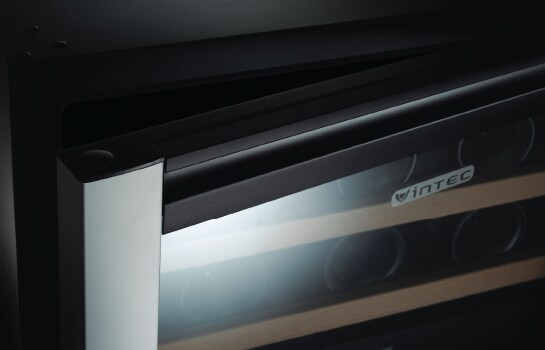

Double glazed door, with anti-UV glass
Winter function heating system
Thermal recycling pump
Audio & visual alarm
Hygrometry alert
Digital temperature display
Security Lock
Steel reinforced casing
LED internal lighting
Made in France

Specifications
Domestic Warranty
2Installation Type
BothFinish
Brushed AluminiumDoor Type
Glass DoorDoor Construction
Double Glazed, UV TreatedHandle
Painted Black AluminiumFridge door opening
LeftRefrigerant
R600aEasy Capacity (Bottles)
190Max Capacity (Bottles)
190Main Function
Cellar Red & WhiteAlternate Function
Serve or CellarNo of Zones
3Temperature Range Zone 1 (deg)
17 - 18 Degrees CTemperature Range Zone 2 (deg)
10 - 14 Degrees CTemperature Range Zone 3 (deg)
6 - 8 Degrees CDepth Door Open (mm)
1410Air space at sides (mm)
10Air space above cabinet (mm)
10Rear Spacer (mm)
50Weight Unloaded
97Power Supply
240V / 10AMPElectricity Consumption (kWh/Day)
0.8Ambient Temperature (deg)
0-35Display Panel
LED Digital DisplayCastors and Feet
4 Adjustable FeetInternal Heater
YesLock
YesAlarm
Audio & VisualLighting
2 Dimmed LEDNumber of Shelves
7Shelving Material
Steel & PS ShockShelving Type
7 Sliding & AdjustableShipping Weight (Kg)
102Pack Dimensions Height (mm)
1950Pack Dimension Width (mm)
760Pack Dimension Depth (mm)
730Type
Wine CabinetFunction
BothHeight (mm)
1825Width (mm)
680Depth (mm)
690Reviews
